LD-500C BOPP tape coating machine

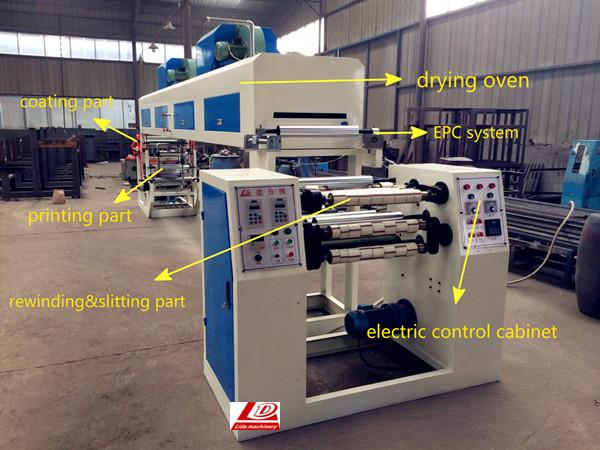

LD-500C BOPP tape coating machine includes coating part, printing part, drying part and slitting part.

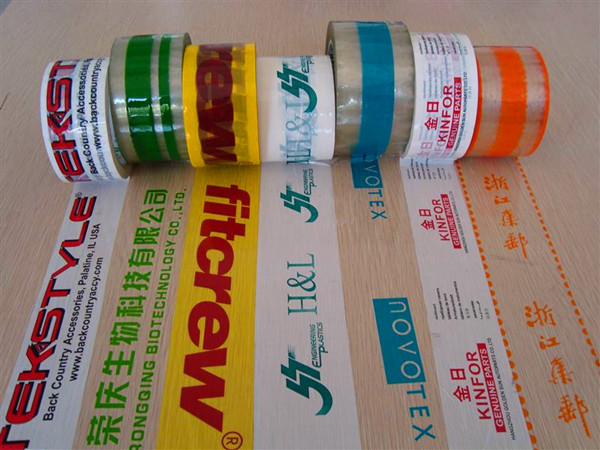

Single Sided acrylic adhesive BOPP tape coating machine can produce different sizes of clear tapes, printed tapes and color tapes with good quality.

Technical parameters of BOPP tape coating machine:

Coating width	500mm, 1000mm	Temperature control	Max 120℃
Coating method	Comma blade,transfer coating	Rewinding edge flatness	Error≤1mm
Max unwinding diameter	600mm	Printing working width	500mm, 1000mm
Max rewinding diameter	200mm	Power loading	15kw
Mini rewinding width	1 inch	framework	12# square steel tube
Drying method	Inbuilt water tank heated by electricity	Coating speed	0-30m/min

Raw material:

Production process of the BOPP tape coating machine:

Before we start the production, we need to cut the long paper core to suitable width with the paper core cutter, then we use the paper core loader to make the small paper tubes attached on the slitting shaft.

1. set the OPP film on the raw material shaft.
2. print on the film(or you don’t print).
3. glue the film.
4. dry the glue through the oven.
Finally, slit the film into small tapes or make the film into a jumbo roll.

Coating & Gravure printing:



Correction device & Four shafts slitting:



To get a complete system, maybe you will also need other three machine: core loader, core cutter and rewinder.

Processing video:
